Cable Hang-off system

The Vos Prodect Hang-Off System is a highly efficient cable hang-off system designed for securing medium and high voltage power cables to the top of a foundation/cable deck of a monopile, jacket or rig.

Redesigned 2nd generation Hang-off

Vos Prodect have identified that quality along with speed is a factor during the installation phases and our current Vos Prodect Hang-Off System 2.1 is the latest Hang-off that we have designed throughout the years. From this latest generation of the Vos Prodect Hang-Off System, our hang-offs have undergone many innovations, tests and design changes to coincide with the changes in the market demands and further improving our systems. Low version is also available for limited space in the cable deck, with a total height of 250mm.

Usage Vos prodect Hang-OFF

A benefit of using the Vos Prodect Hang-Off System is that installation times are kept to a minimum. On average to install the temporary hang-off clamps takes approximately 45 minutes. Even for inexperienced users who have attended our ‘training days’, they are able to install the temporary hang-off clamps in under 1 hour.

Coating options

  • Hot Dip Galvanizing according to ISO 1461
  • Paint System according to ISO 12944-2
  • Paint System according to NORSOK 501 – System 1 and System 6
  • Plascoat
  • Others available on request

All KEY FEATURES

  • Fast and efficient assembly times due to the split design
  • Independently operated temporary and permanent hang-off clamps
  • Temporary clamp can be easily released once cable is secured with permanent hang off
  • Off the shelf hang-off body’s, ranging from Small to XL to cover all cable manufacturer diameters
  • Off the shelf/bespoke hang-off temporary clamps to cover all cable manufacturer diameters
  • Project based implementation / meeting the technical & functional requirements
  • Corrosion protection with innovative surface treatment
  • Earthing connection
  • Proven sealing option up to 2 bar
  • Assembly/Installation/Sealing Tests can be performed at Vos Prodect’s testing facility
  • Packing in accordance with the project requirements

RESIN FREE ENVIRONMENTAL SEAl

Vos Prodect has recently innovated a Resin Free solution accessory for our Cable Hang-Off System which is known as an ‘Environmental Seal’. In comparison to a traditional resin filled Cable Hang-Off System, the Environmental Seal offers a much more eco-friendly resin free solution to achieve the IP 44 Norm. To find out more information on this latest innovative accessory read the full article here or contact us for more information.

RELATED products

Onshore landing clamp

Onshore landing clamp

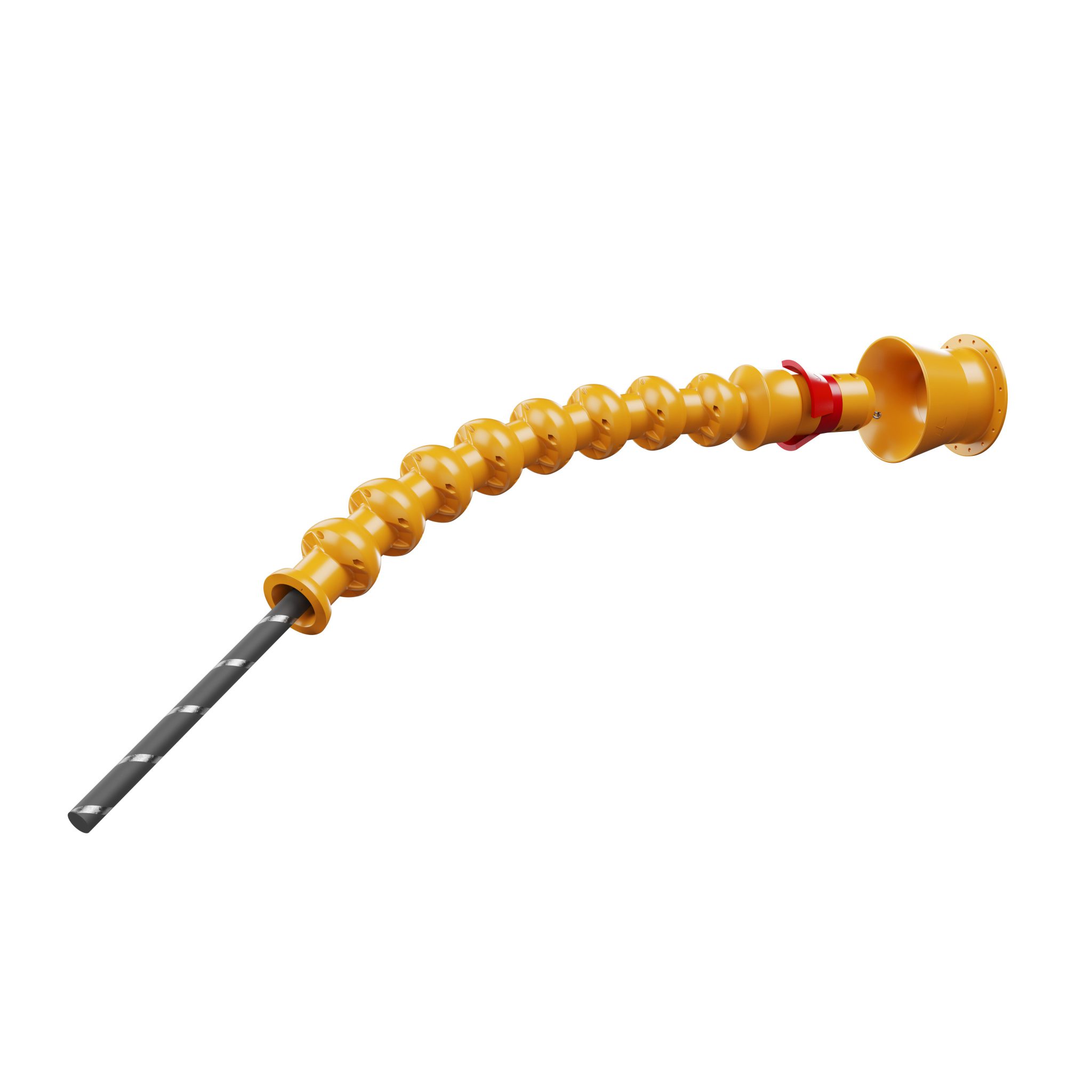

tube entry system

VPI TUBE ENTRY SYSTEM

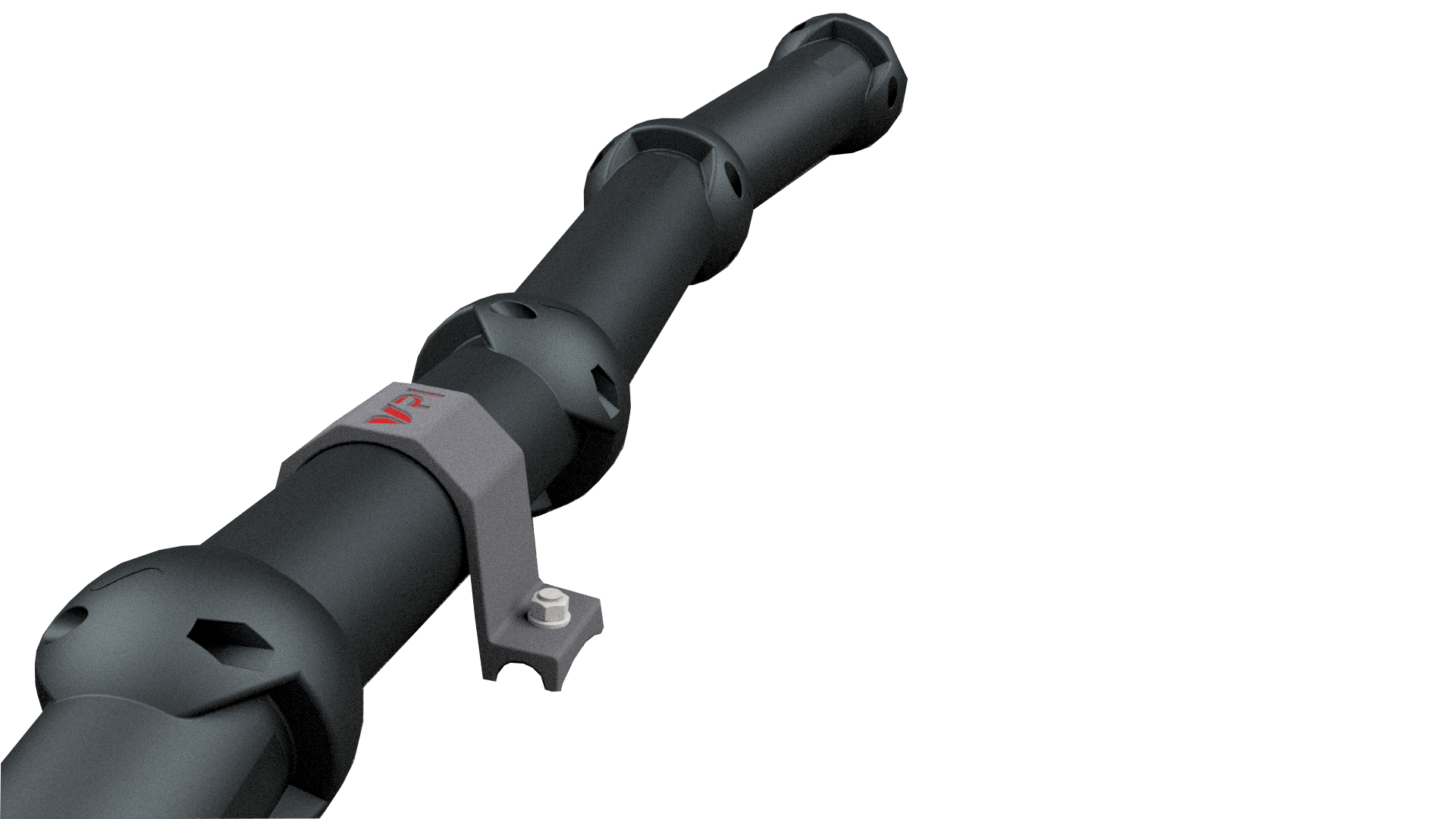

Cable protection system
